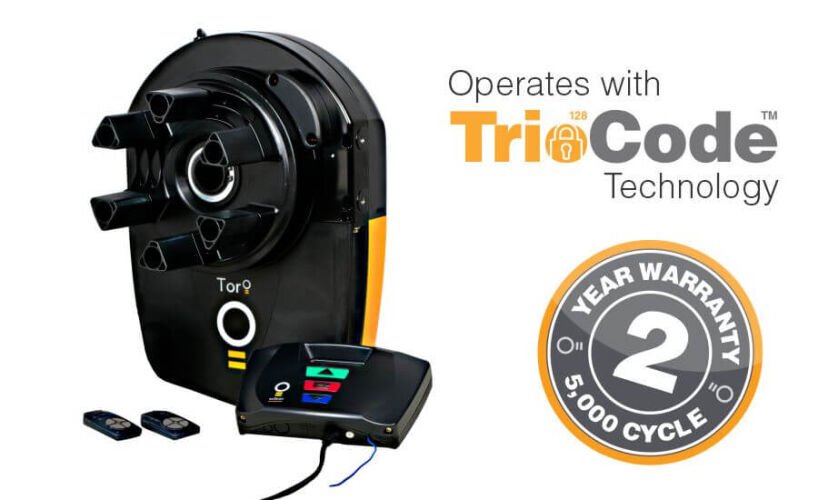

Garador GDO-10 Roller Door Opener
The Garador Toro offers a sophisticated industrial rolling door opener with superior pulling power. It comes standard with a built-in battery back up and a wall mounted LCD control panel that can program a variety of operating modes for your security and safety.
It has all the security and reliability that Garador is famous for and can manage up to 511 TrioCode™ 128-bit secure transmitters.
It doesn’t get much better than this.
A bold statement, but the Garador GDO-10 takes away the difficulties of large rolling door automation with features such as:
- Suitable for rolling doors up to 28m2
- Built in battery back up to eliminate manual chain systems
- A wall mounted control panel with LCD screen, backlit buttons and time/date functions
- Soft start/soft stop operation
- TrioCode™ receiver integrated as standard
- Super quiet operation
- Variety of operating modes including date/time specific auto-close, safety mode and more
Opener Brochure
Our garage door openers are reliable, smooth, quiet and have enhanced security built-in.
Our openers are designed to work in synergy with the complete range of Garador garage doors.
Garador Guarantee
Purchase your Garador Garage Door with Confidence
Our Garage doors are built reliable to provide extra reassurance & have been trusted by Kiwi's across New Zealand for over 50 years.
With a country-wide Dealer network, there's a Local Garador near you.
Read moreDesigned with The Future In Mind
- Soft start/soft stop operation through 24V DC drive
- The intuitive LCD driven menu system allows for: – quick access to setup, maintenance or diagnostic functions – assigning a user’s name to a transmitter, creating user groups, and access management – setup of a password to prevent tampering with settings
- 24 hour/7 day time clock which can automatically control userprogrammed functions, such as keeping the door open on busy weekday mornings, or locking out everyone but master users on weekends
- Ready for integration with PE Safety Beams, loop detectors, swipe card systems, fire alarm functions and more
- Outputs to integrate safety flashing lights, courtesy lights (with optional 240V light relay), and other auxiliary devices
Simplicity Is the Key
- No electrician needed for setup – the GDO-10 plugs into a standard outlet saving time and money
- Magnetic Automatic Limits Positioning System (M-ALPS), which unlike optical limit systems, is highly resistant to dust, dirt and fouling by insects
- The integrated battery backup, with automatic activation, means your door needs no chains or fiddly clutches
Built for Demanding Situations
- 50% duty cycle – equivalent to approximately 600 operations per day
- Will open doors up to 28m2
- Ready to function with up to 511 TrioCode™ transmitters
Opener Brochure
Our garage door openers are reliable, smooth, quiet and have enhanced security built-in.
Our openers are designed to work in synergy with the complete range of Garador garage doors.
Safety Beams
Safety Beams detect movement or obstruction of the door and reverse door to avert serious damage being done and to help protect your family, car and pets.
Use Safety Beams to trigger the auto-close mode after a vehicle has left the garage.
Recommended when using the Smart Phone Control Kit or Auto-Close Function.
